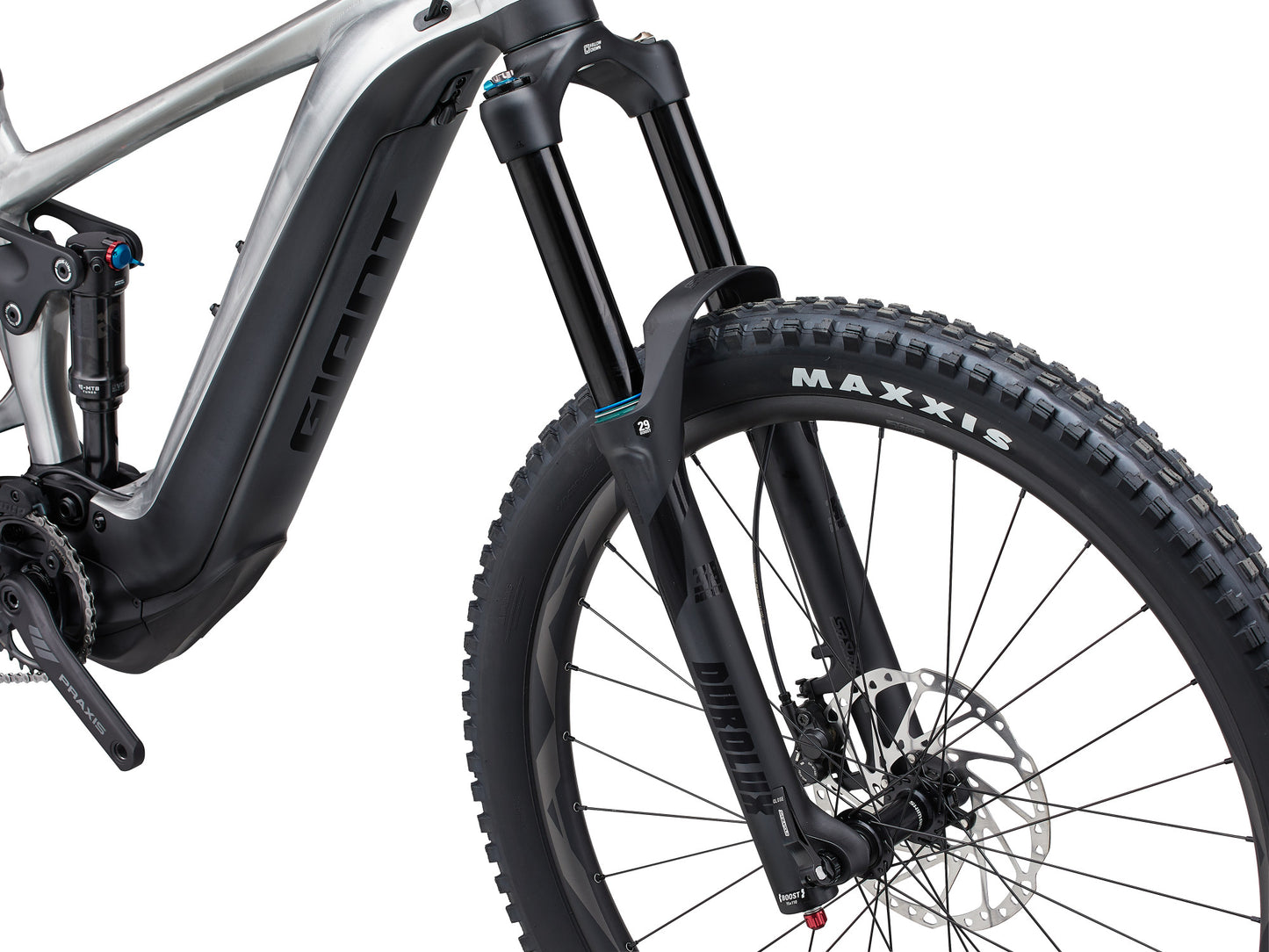

Giant Reigh E + 3 2024
Giant Reigh E + 3 2024
Couldn't load pickup availability
EVERY TRAIL, EVERY STEEP CLIMB, EVERY THRILLING DESCENT. NOTHING IS OUT OF BOUNDS WITH THE REIGN E+. THIS PROVEN TRAIL RIPPER GIVES YOU THE POWER TO ENJOY THE BEST PARTS OF THE RIDE AGAIN AND AGAIN.
KEY PERFORMANCE FACTORS
Trail technology
Proven Maestro rear suspension (160mm) and a powerful but compact SyncDrive Pro motor boost your capabilities on steep climbs and rugged descents. Progressive geometry with a shorter rear end and longer reach allow superior handling and agility on technic
Total control
RideControl Ergo 3 offers integrated, user-friendly button controls that are easy to use. The Giant E-bike App gives you tuning options and E-bike specific fitness tracking.
Long-lasting power
Climb steep mountains and enjoy ripping descents all day long with the new downtube-integrated EnergyPak battery system featuring 800Wh of capacity.
Motor SyncDrive Pro 2, 85Nm, powered by Yamaha
Controller RideControl Ergo 3, grip integrated
Display RideControl GO, frame integrated LED display ANT+ Wireless display compatible
Battery EnergyPak Smart 800Wh EnergyPak Plus range extender compatible
Charger EnergyPak 6A smart charger
Connectivity Giant RideControl App enabled ANT+ wireless display signal with e-bike profile
Sizes S, M, L, XL
Colours Raw Aluminium
Frame ALUXX SL-grade Aluminium, Advanced Forged Composite Upper Rocker, 160mm Maestro suspension system, flip chip, UDH hanger 12x148mm thru-axle
Fork SR Suntour Durolux 38 Boost EQ, 170mm travel, 44mm offset, RC2, 15LH-110
Shock Fox Float DPS Performance, EVOL Large Volume sleeve, custom tuned
Handlebar Giant Contact Trail, 35mm
Grips Giant Tactal Pro-E, single lock-on
Stem Giant Contact SL 35mm S:40mm, M:40mm, L:40mm, XL:50mm
Seatpost Giant Contact Switch travel-adjustable dropper, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 170-200mm travel / 30.9 x 530mm
Saddle Giant Romero Trail
Pedals Platform
Shifters Shimano CUES, SL-6000, 1x11
Front Derailleur MRP 1X HD2 custom co-molded chain guide
Rear Derailleur Shimano CUES, U6000, Shadow+
Brakes Shimano BR-MT420, 4-piston, hydraulic disc, 203mm
Brake Levers Shimano Deore, I-spec EV
Cassette Shimano Cues LinkGlide, CS-LG400-11, 11-50T, 11-speed
Chain Shimano Cues CN-LG500
Crankset Praxis Wave™ 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set S:160mm, M: 160mm, L:165mm, XL:165mm
Rims Giant AM 29" [F] 27.5" [R], Tubeless ready
Hubs Shimano MT410, Boost, Center-Lock, [F] 110x15 [R] 148x12mm HG Drive Body Thru-axle
Spokes Sapim E-Lite [R] Race [F], e-bike optimised
Tires Maxxis Minion DHF 29x2.6" foldable, Tubeless, EXO+, 3C MaxxTerra [F] Maxxis High Roller II 27.5x2.5" foldable, Tubeless, DoubleDown, 3C MaxxTerra Compound [R]
Extras Tubeless kit (liquid, valves, levers, manual, tool)
Lock Torx 25 Battery Lock with built-in Torque limiter
Weight The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
