Giant Reign E + 1 2024
Giant Reign E + 1 2024
Couldn't load pickup availability
EVERY TRAIL, EVERY STEEP CLIMB, EVERY THRILLING DESCENT. NOTHING IS OUT OF BOUNDS WITH THE REIGN E+. THIS PROVEN TRAIL RIPPER GIVES YOU THE POWER TO ENJOY THE BEST PARTS OF THE RIDE AGAIN AND AGAIN.
KEY PERFORMANCE FACTORS
Trail technology

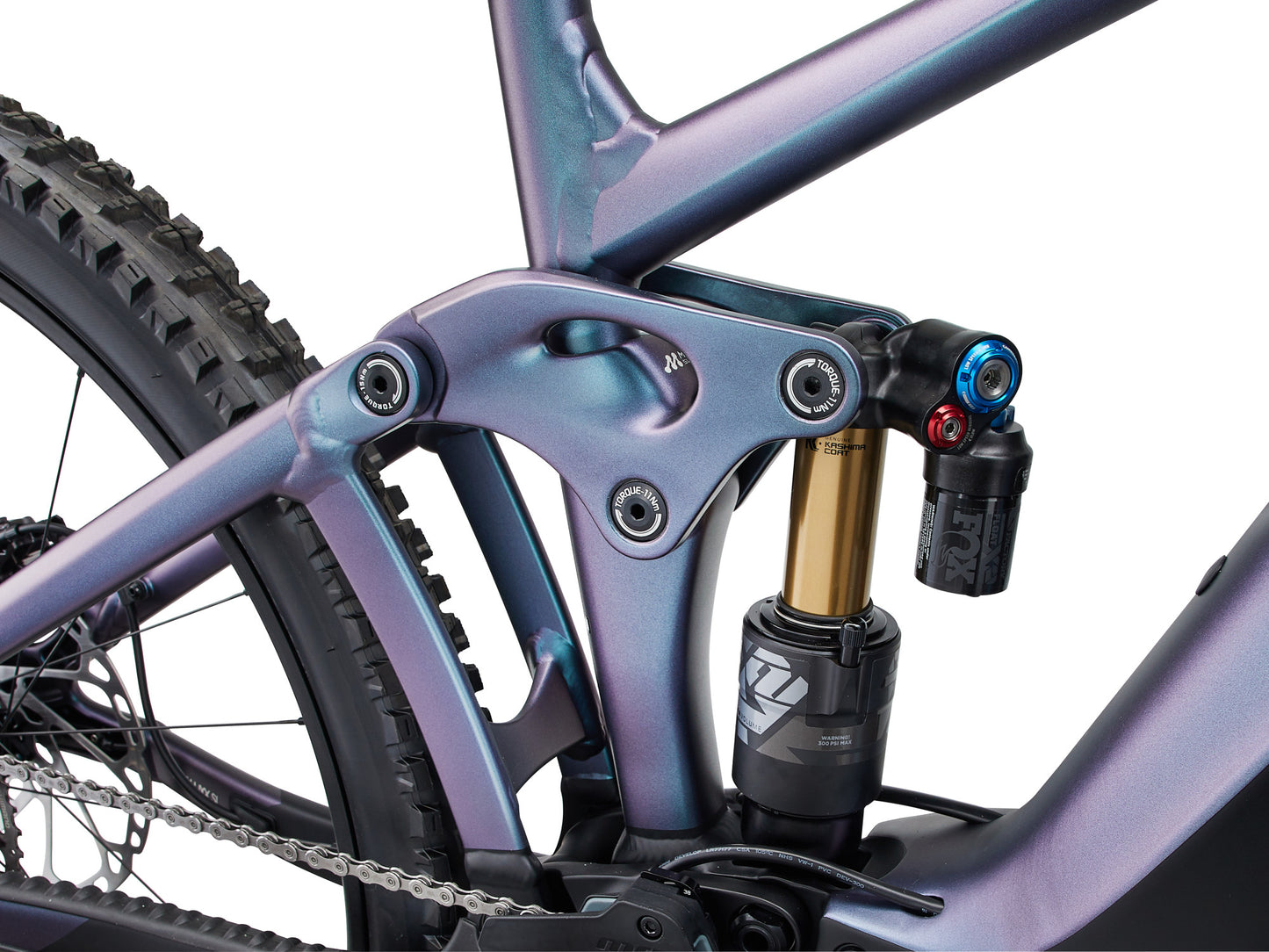

Proven Maestro rear suspension (160mm) and a powerful but compact SyncDrive Pro motor boost your capabilities on steep climbs and rugged descents. Progressive geometry with a shorter rear end and longer reach allow superior handling and agility on technic
Total control
RideControl Ergo 3 offers integrated, user-friendly button controls that are easy to use. The Giant E-bike App gives you tuning options and E-bike specific fitness tracking.
Long-lasting power
Climb steep mountains and enjoy ripping descents all day long with the new downtube-integrated EnergyPak battery system featuring 800Wh of capacity.
Motor SyncDrive Pro 2, 85Nm, powered by Yamaha
Controller RideControl Ergo 3, grip integrated
Display RideControl GO, frame integrated LED display ANT+ Wireless display compatible
Battery EnergyPak Smart 800Wh EnergyPak Plus range extender compatible
Charger EnergyPak 6A smart charger
Connectivity Giant RideControl App enabled ANT+ wireless display signal with e-bike profile
Sizes S, M, L, XL
Colours Blue Dragonfly / Black
Frame ALUXX SL-grade Aluminium, Advanced Forged Composite Upper Rocker, 160mm Maestro suspension system, flip chip, UDH hanger 12x148mm thru-axle
Fork Fox 38 Factory E-Tuned, 170mm travel, 44mm offset, GRIP2 VVC damper, Boost Kabolt-X 110x15mm
Shock Fox X2 Factory, EVOL Large Volume sleeve, custom tuned
Handlebar Giant Contact Trail, 35mm
Grips Giant Tactal Pro-E, single lock-on
Stem Giant Contact SL 35mm S:40mm, M:40mm, L:40mm, XL:50mm
Seatpost TranzX travel-adjustable dropper, remote S: 120-150mm travel / 30.9 x 459mm M: 140-170mm travel / 30.9 x 499mm L: 170-200mm travel / 30.9 x 559mm XL: 170-200mm travel / 30.9 x 559mm
Saddle Giant Romero Trail
Pedals Platform
Shifters Shimano XT LinkGlide, 1x11
Front Derailleur MRP HD2 co-moulded chain guide
Rear Derailleur Shimano XT LinkGlide 11-speed, Shadow+
Brakes Shimano XT BR-M8120, 4-piston, hydraulic disc, [F] 220mm, [R] 220mm
Brake Levers Shimano XT BL-M8100, I-spec EV
Cassette Shimano Cues LinkGlide, CS-LG400-11, 11-50T, 11-speed
Chain Shimano LinkGlide, CN-LG500
Crankset Praxis N.W. 36T Cold Forged 4130 premium steel Praxis e-HD forged crankarm set (S/M:160mm, L/XL:165mm)
Rims E-TRA Hookless Tubeless ready Alloy 29 [F] / 27.5 [R], 30mm inner width
Hubs E-TRA MTB Alloy Hub, 6 Bolt, 110x15 [F] / 148x12 Shimano HG Drive Body Pawl Driver (3 Pawl 30T) Thru-axle [R]
Spokes Sapim E-Lite [R] Race [F], e-bike optimised
Tires Maxxis Minion DHF 29x2.6"" foldable, Tubeless, EXO+, 3C MaxxTerra[F] Maxxis High Roller II 27.5x2.5"" foldable, Tubeless, DoubleDown, 3C MaxxTerra Compound [R]
Extras Tubeless kit (liquid, valves, levers, manual, tool)
Lock Torx 25 Battery Lock with built-in Torque limiter
Weight The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
