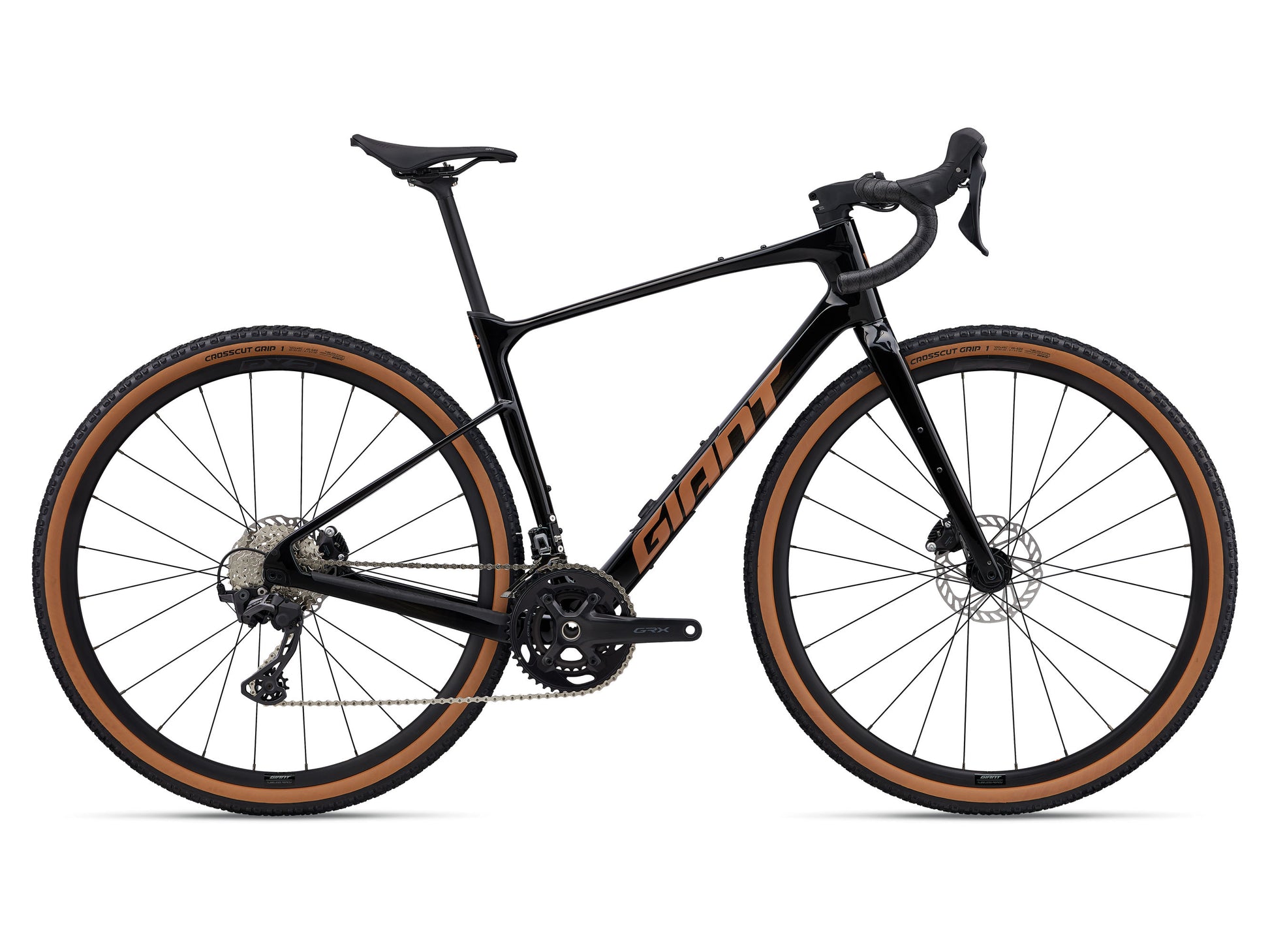

Giant Revolt Advanced 2 2026

Fast and light

Advanced composite frame and fork save more than 160g compared to the previous model. Updated geometry includes a lower bottom bracket, longer reach and steeper head tube angle for improved acceleration and climbing.

Tuned compliance

Dropped seatstays with thin tubing absorbs road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.

Adaptable to the terrain

A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling, or long for improved stability at speed. The long setting allows for larger diameter tyres up to 53mm. You can also choose the included D-Fuse seatpost* for maximum compliance, or switch to a 30.9mm round or dropper post. *On select models

• Sizes
  XS, S, M, M/L, L, XL
• Colours
  Carbon
• Frame
  Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage
• Fork
  Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
• Handlebar
  Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
• Grips
  Stratus Lite 3.0
• Stem
  Giant Contact AeroLight, -10 degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
• Seatpost
  Giant D-Fuse, composite, 14mm offset
• Saddle
  Giant Grit
• Pedals
  N/A
• Shifters
  Shimano GRX RX-610, 2x12
• Front Derailleur
  Shimano GRX RX-820
• Rear Derailleur
  Shimano GRX RX-820, Shadow+
• Brakes
  Shimano BR-RX410hydraulic, Giant MPH rotors [F]160mm, [R]160mm
• Brake Levers
  Shimano GRX RX-610 hydraulic
• Cassette
  Shimano CS-HG710, 12-speed, 11x36
• Chain
  KMC X12L-1
• Crankset
  Shimano RX610-2, 30/46 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
• Bottom Bracket
  Shimano, press fit
• Rims
  Giant P-X2 Disc wheelset, alloy
• Hubs
  Giant alloy, 12mm thru-axle
• Spokes
  Sapim
• Tires
  Giant Crosscut Grip, 700x45c, tubeless
• Extras
  Tubeless prepared, 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position, in-frame storage bag
• Max Tyre Clearance
  53mm
• Weight
  The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
