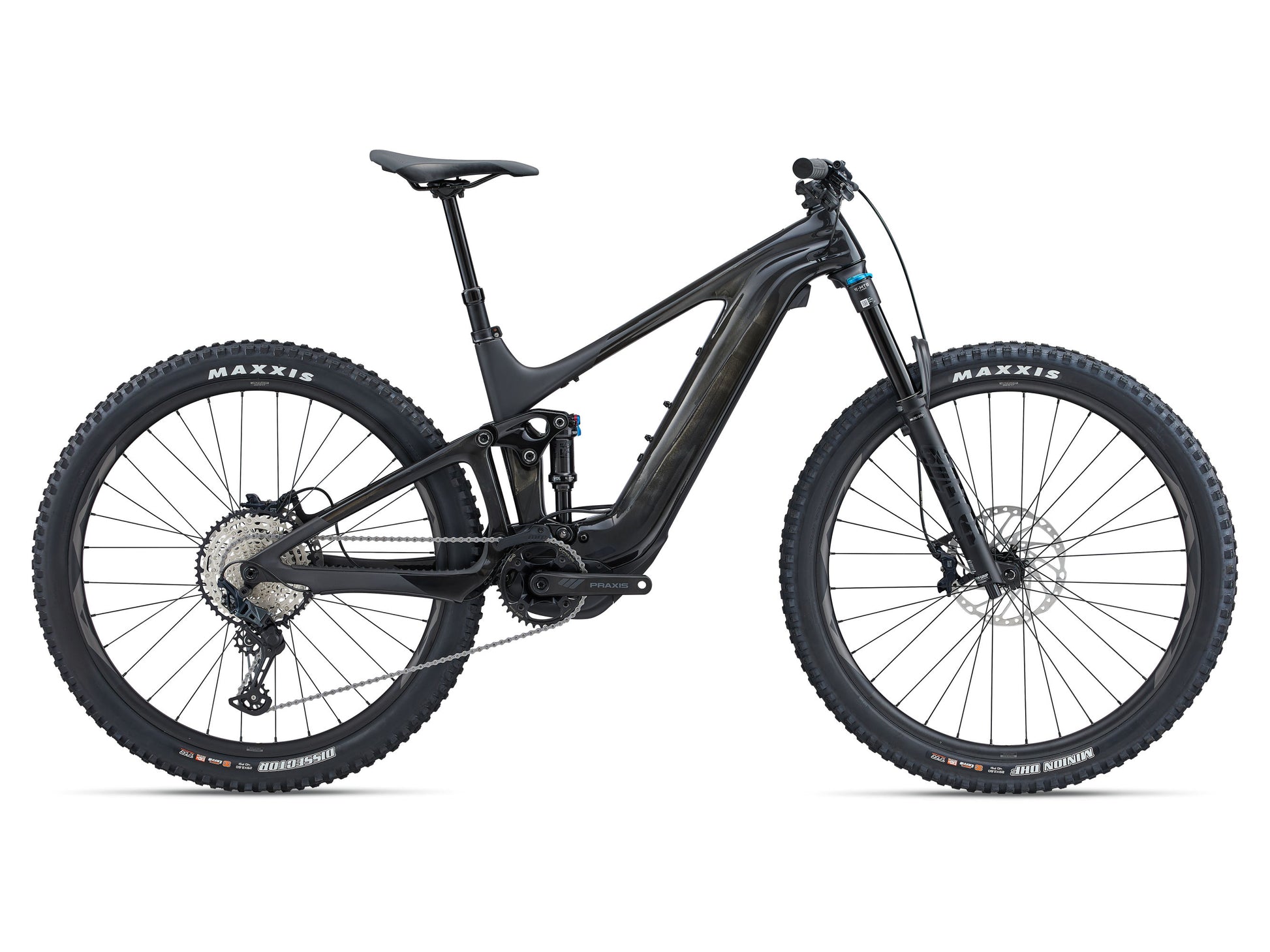

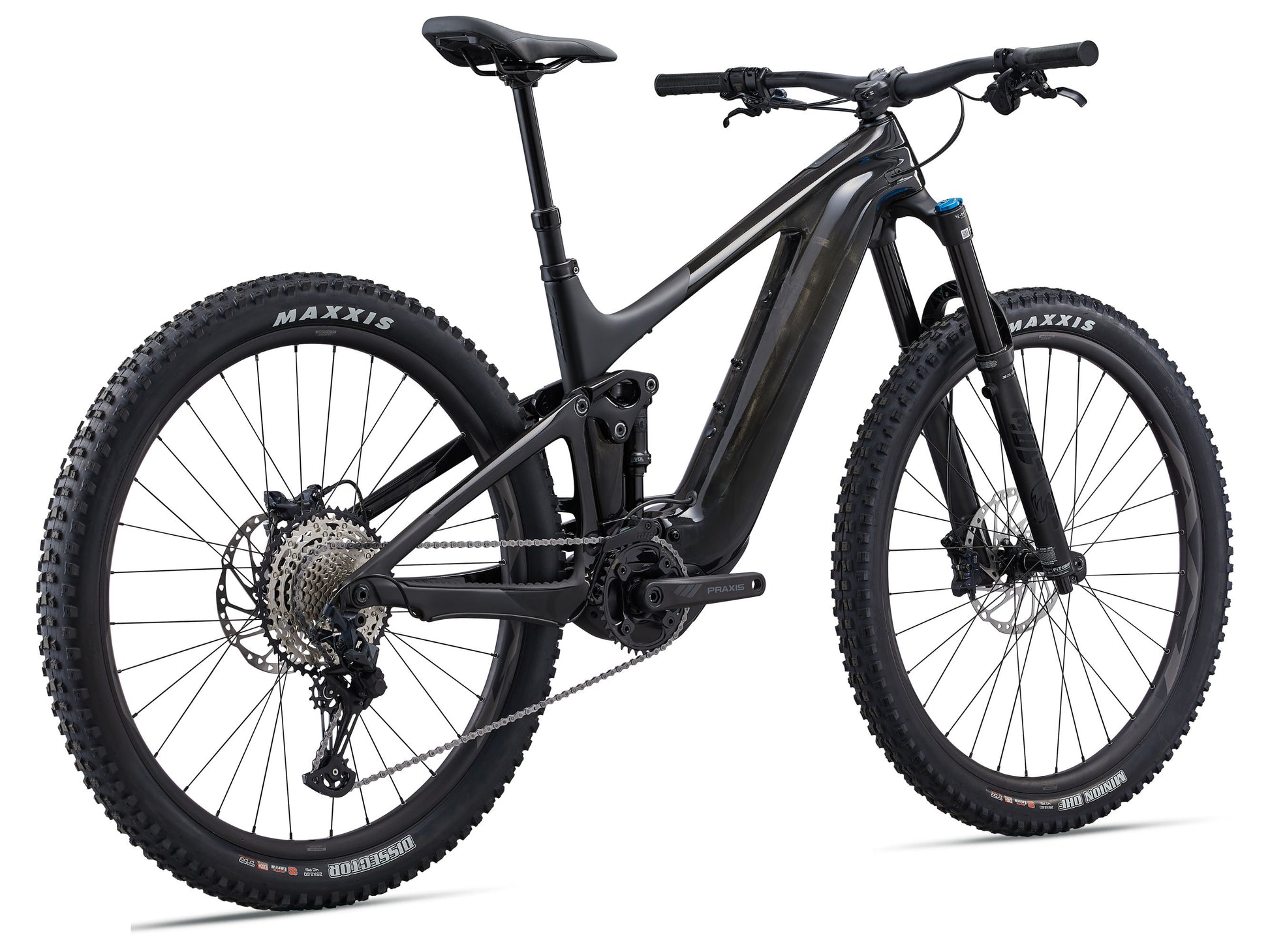

Giant Trance X Advanced E+2 2023

Giant Trance X Advanced E+2 2023

$7,499.00 AUD
$9,999.00 AUD $7,499.00 AUD
Sale Sold out
Color
Size

S,M sizes Available to order contact us for details



A new breed of trail bike that blends power, performance and flat-out fun. With its lightweight composite frame, plush suspension and new motor technology, you’ll never want the ride to end.

Key Performance Factors

Powerful and responsive

SyncDrive Pro motor with 85Nm of torque creates powerful pedalling assistance even at low speeds. Lightweight, stiff Advanced-grade composite frame with 140mm of Maestro rear suspension travel and 150mm up front delivers confident handling and control on rough trails.

Adaptable to the terrain

Flip chip feature lets you change the head tube and seat tube angles, along with the bottom bracket height, to fine-tune handling for varying trail conditions and individual riding style. You can choose the low position for fast, aggressive terrain, or high for a more XC-oriented rider position.

Clean cockpit

RideControl Go top tube integrated multi-function on/off button and RideControl Ergo 3 handlebar-mounted remote, which can be mounted on either grip, offer user-friendly controls and an uncluttered cockpit design.

Range

How far can I expect to ride on a single battery charge?

The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tire pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.

The bar below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.



  • Motor
    Giant SyncDrive Pro2 85Nm, PedalPlus 6-Sensor technology
  • Controller
    RideControl Ergo 3, grip integrated
  • Display
    "RideControl GO, frame integrated LED display ANT+ Wireless display compatible"
  • Battery
    Giant EnergyPak 800Wh, 22700 Lithium cell technology, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production Giant EnergyPak Plus 250 range extender compatible
  • Charger
    Giant EnergyPak 6A smart charger, 60% in 2:15h
  • Connectivity
    Giant RideControl App enabled ANT+ wireless display signal with e-bike profile
  • Sizes
    S, M, L, XL
  • Colours
    Carbon Smoke
  • Frame
    Advanced-grade composite frame, Advanced-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system, 'Boost' 148x12 UDH rear axle, Giant EnergyPak Plus Range Extender Compatible
  • Fork
    Fox 36 Float Performance E-Tuned, 29er, 150mm travel, 44mm offset, Grip 3-position Micro Adjust damper, Kabolt-X 110
  • Shock
    Fox DPS Performance, EVOL Large Volume sleeve, 3-position Lever, 185x52.5mm Trunnion mount, custom tuned, recommended sag: 30%
  • Handlebar
    Giant Contact 35 Trail
  • Grips
    Giant Tactal Pro-E, tapered design, 135mm Ø28~30mm (S/M) 142mm Ø29~32mm (L/XL)
  • Stem
    Giant Contact SL 35
  • Seatpost
    Giant Contact Switch, dropper
  • Saddle
    Giant Romero, Neutral
  • Pedals
    Flatpedal
  • Shifters
    Shimano Deore SLX
  • Front Derailleur
    MRP HD2 co-moulded chain guide
  • Rear Derailleur
    Shimano Deore SLX, 12-speed, Shadow+
  • Brakes
    Shimano SLX, BR-M7120, 4-piston, hydraulic disc, 203mm
  • Brake Levers
    Shimano SLX, I-spec EV
  • Cassette
    Shimano CS-M6100, 10-51T, 12-speed
  • Chain
    KMC e.12 Sport, NP/NP, e-bike optimized
  • Crankset
    Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set
  • Bottom Bracket
    N/A
  • Rims
    Giant AM 29"
  • Hubs
    Shimano MT410, Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle
  • Spokes
    Sapim E-Lite [R] Race [F], e-bike optimized
  • Tires
    Maxxis Minion DHF 29x2.6" foldable, Tubeless, EXO+, 3C MaxxTerra [F]Maxxis Dissector 29x2.6" Foldable, Tubeless, EXO+, 3C MaxxTerra [R]
  • Extras
    Tubeless kit (liquid, valves, levers)
  • Lighting
    Optional:- Giant Recon series e-bike lights available and direct connectable
  • Lock
    Torx 25 Battery Lock with built-in Torque limiter
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
