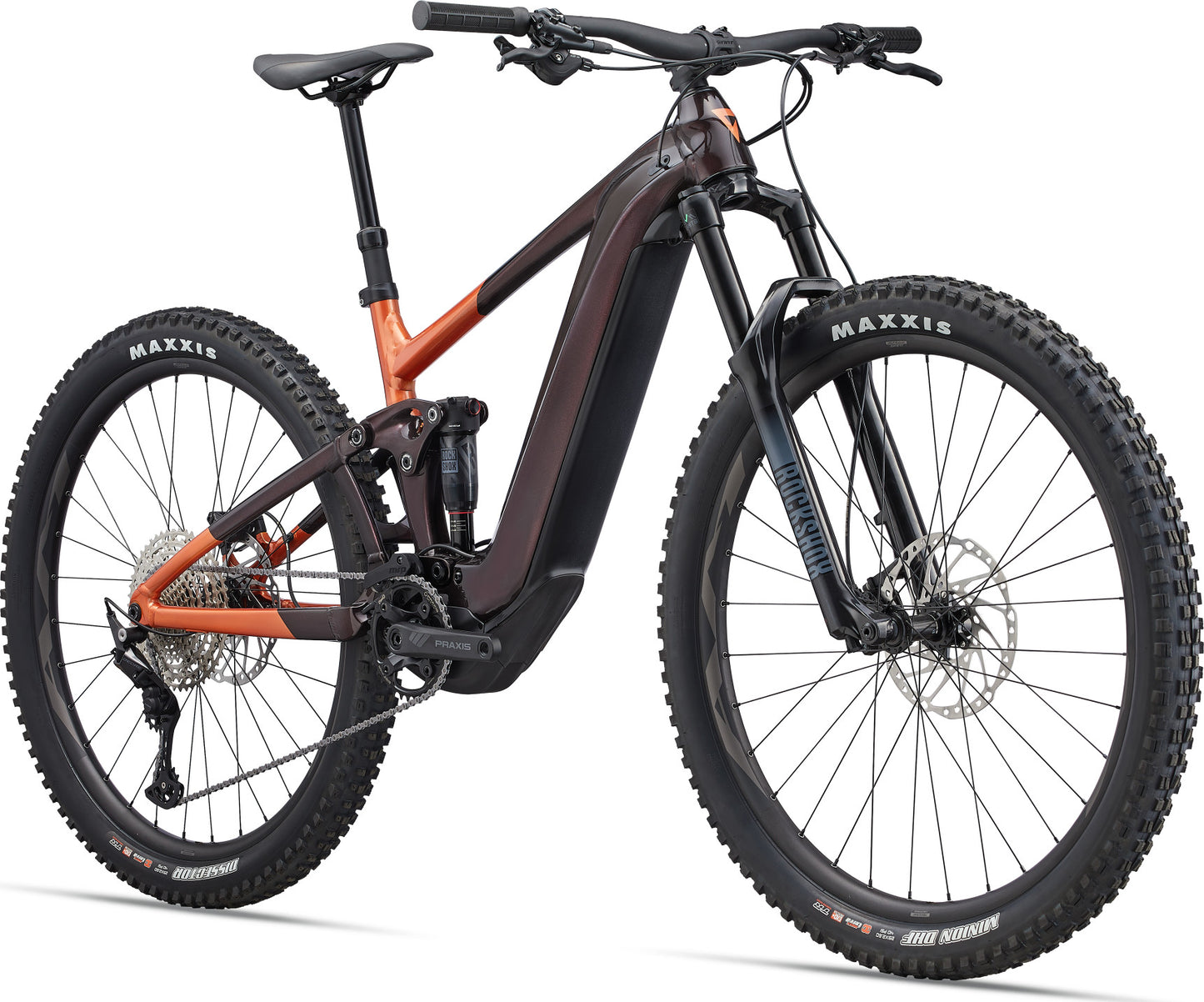

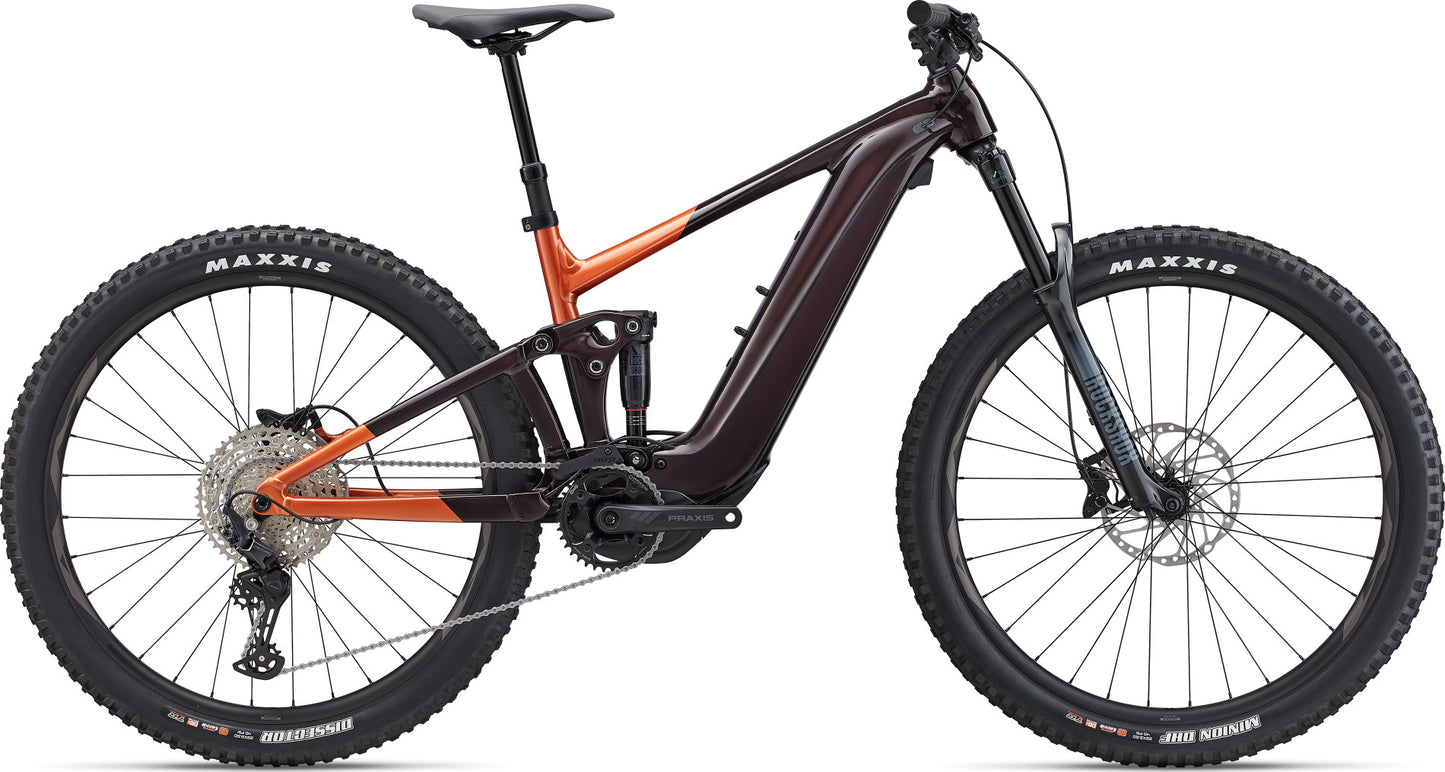

Giant Trance X E + 3
Giant Trance X E + 3
Couldn't load pickup availability
FASTER UP THE CLIMBS, LONGER LOOPS, MORE SINGLETRACK FUN ON ANY GIVEN DAY. FREE YOURSELF TO PUSH YOUR TRAIL RIDING TO THE NEXT LEVEL WITH THIS POWERFUL, FUN AND SMOOTH-RIDING E-BIKE.
KEY PERFORMANCE FACTORS
Smooth, powerful support
SyncDrive Pro motor delivers 85Nm of torque and tuneable support ratios up to 400 percent. Smart Assist technology creates smooth pedal assistance that engages instantly when human power is applied, giving you reliable performance on steep climbs and at low speeds.
Trail-riding control
Optimised Maestro suspension for 29-inch wheels with 140mm rear/ 150mm front travel to roll over rough terrain with balance and stability, giving you more momentum for technical climbs and the confidence to fly on fast, rugged singletrack descents.
Adaptable to the terrain
Flip chip feature lets you change the head tube and seat tube angles, along with the bottom bracket height, to fine-tune handling for varying trail conditions and individual riding style. You can choose the low position for fast, aggressive terrain, or high for a more XC-oriented rider position.
Motor Giant SyncDrive Pro2 85Nm, PedalPlus 6-Sensor technology
Controller RideControl Ergo 3, grip integrated Display RideControl GO, frame integrated LED display ANT+ Wireless display compatible
Battery Giant EnergyPak 750Wh, Lithium cell technology, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production Giant EnergyPak Plus 250 range extender compatible
Charger Giant EnergyPak 6A smart charger, 60% in 2:10h
Connectivity Giant RideControl App enabled ANT+ wireless display signal with e-bike profile
Sizes S, M, L, XL
Colours Cordovan
Frame ALUXX SL-grade Aluminum, Advanced Forged Composite linkage, 140mm Maestro Suspension System, 'Boost' 148x12 UDH rear axle, Giant EnergyPak Plus Range Extender Compatible
Fork RockShox 35 Gold RL DebonAir, 150mm travel, 44mm offset, MotionControltm rebound and lockout control, 15x110 Boost, Maxle Stealth, e-MTB optimized
Shock Rock Shox Deluxe Select R, DebonAir, 185x52.5mm Trunnion mount, custom tuned, recommended sag: 30%
Handlebar Giant Contact 35 Trail
Grips Giant Tactal Pro-E, tapered design, 135mm Ø28~30mm (S/M) 142mm Ø29~32mm (L/XL)
Stem Giant Contact SL 35
Seatpost Giant Contact Switch dropper, remote S: 125mm travel / 30.9 x 395mm, M: 150mm travel / 30.9 x 440mm, L: 170mm travel / 30.9 x 450mm, XL: 170mm travel / 30.9 x 450mm
Saddle Giant Romero E
Pedals Flat pedals
Shifters Shimano Deore
Front Derailleur MRP HD2 co-moulded chain guide
Rear Derailleur Shimano Deore, 12-speed
Brakes Shimano BR-M420, 4-piston, hydraulic disc, 203mm
Brake Levers Shimano Deore, I-spec EV
Cassette Shimano CS-M6100-12, 10-51T, 12-speed
Chain KMC e.12 Turbo, EcoProteq, e-bike optimized
Crankset Praxis Wave 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (Q-factor=168, S:160, M/L:165, XL:170
Rims Giant AM 29"
Hubs Shimano MT410 Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle
Spokes Sapim E-Lite [R] Race [F], e-bike optimized
Tires Maxxis Minion DHF 29x2.6" foldable, Tubeless, EXO+, 3C MaxxTerra [F]Maxxis Dissector 29x2.6" Foldable, Tubeless, EXO+, 3C MaxxTerra [R]
Extras Tubeless kit (liquid, valves, levers)
Lock Torx 25 Battery Lock with built-in Torque limiter
Weight The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
