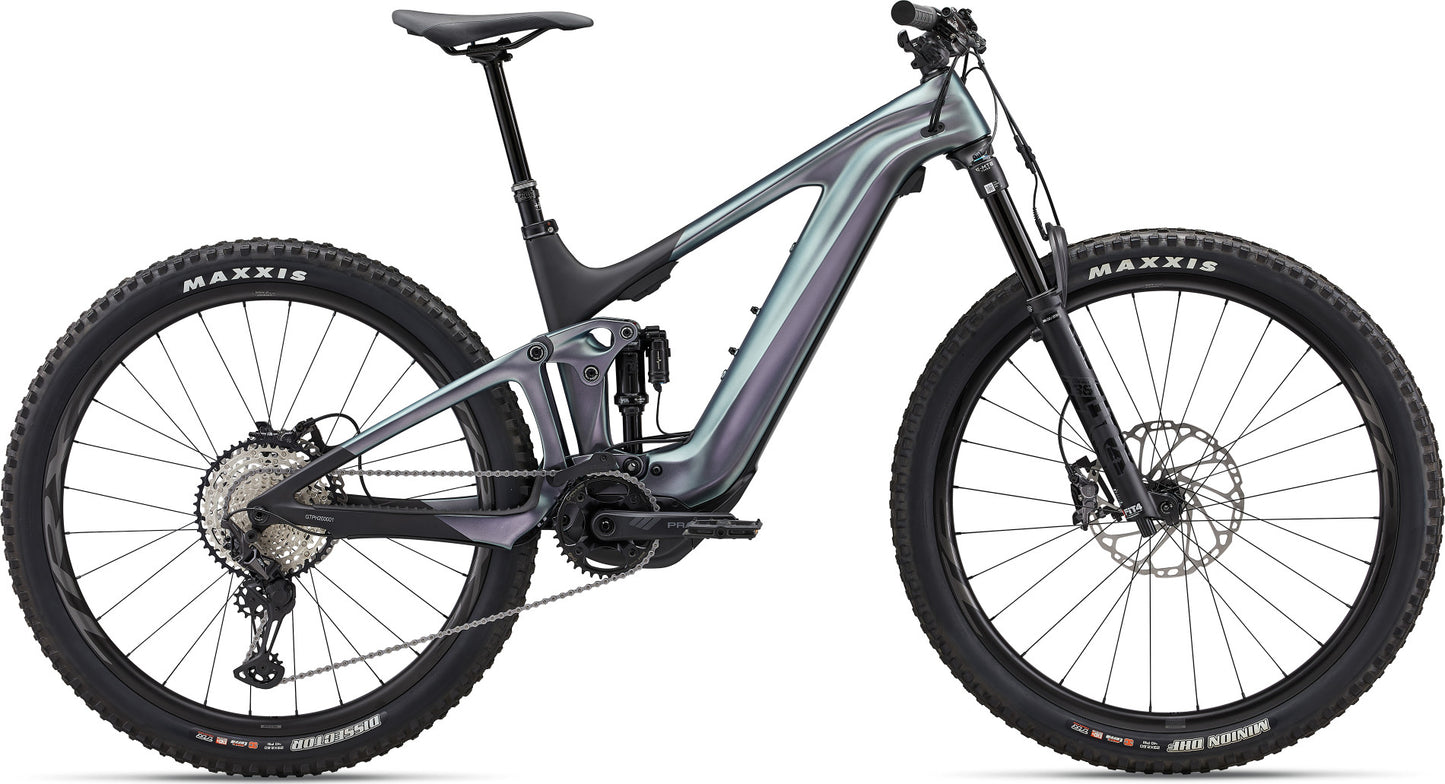

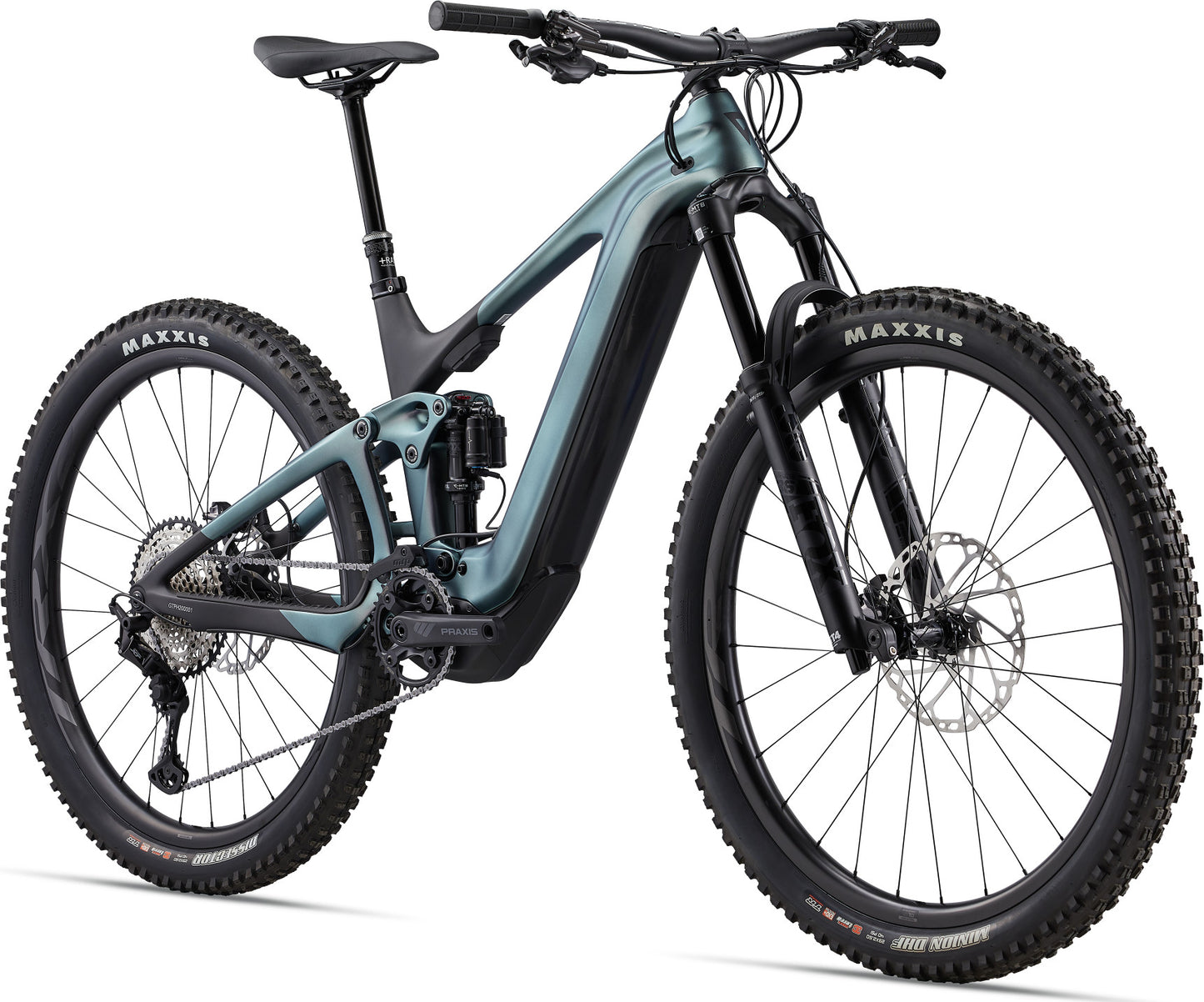

Giant Trance X Advanced E + 1
Giant Trance X Advanced E + 1
A NEW BREED OF TRAIL BIKE THAT BLENDS POWER, PERFORMANCE AND FLAT-OUT FUN. WITH ITS LIGHTWEIGHT COMPOSITE FRAME, PLUSH SUSPENSION AND NEW MOTOR TECHNOLOGY, YOU’LL NEVER WANT THE RIDE TO END.
KEY PERFORMANCE FACTORS
Powerful and responsive
SyncDrive Pro motor with 85Nm of torque creates powerful pedalling assistance even at low speeds. Lightweight, stiff Advanced-grade composite frame with 140mm of Maestro rear suspension travel and 150mm up front delivers confident handling and control on rough trails.
Adaptable to the terrain
Flip chip feature lets you change the head tube and seat tube angles, along with the bottom bracket height, to fine-tune handling for varying trail conditions and individual riding style. You can choose the low position for fast, aggressive terrain, or high for a more XC-oriented rider position.
Clean cockpit
RideControl Go top tube integrated multi-function on/off button and RideControl Ergo 3 handlebar-mounted remote, which can be mounted on either grip, offer user-friendly controls and an uncluttered cockpit design.
Motor Giant SyncDrive Pro2 85Nm, PedalPlus 6-Sensor technology
Controller RideControl Ergo 3, grip integrated
Display RideControl GO, frame integrated LED display ANT+ Wireless display compatible
Battery Giant EnergyPak 800Wh, 22700 Lithium cell technology, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production Giant EnergyPak Plus 250 range extender compatible
Charger Giant EnergyPak 6A smart charger, 60% in 2:15h Connectivity
Giant RideControl App enabled ANT+ wireless display signal with e-bike profile
Sizes S, M, L, XL
Colours Airglow
Frame Advanced-grade composite frame, Advanced-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system, 'Boost' 148x12 UDH rear axle, Giant EnergyPak Plus Range Extender Compatible
Fork Fox 36 Performance Elite Live Valve E-Tuned, 29er, 150mm travel, 44mm offset, Fit4 damper, Kabolt-X 110, electronic adaptive suspension, e-bike integrated
Shock Fox Float X Live Valve, 185x52.5mm Trunnion mount, electronic suspension, e-bike integrated, recommended sag: 30%
Handlebar Giant Contact SL 35
Grips Giant Tactal Pro-E, tapered design, 135mm Ø28~30mm (S/M) 142mm Ø29~32mm (L/XL)
Stem Giant Contact SL 35
Seatpost Tranz-X Rad+ travel adjust dropper, dropper
Saddle Giant Romero, Neutral
Pedals Flat pedals
Shifters Shimano Deore XT
Front Derailleur MRP HD2 co-moulded chain guide
Rear Derailleur Shimano Deore XT, 12-speed, Shadow+
Brakes Shimano Deore XT, BR-M8120, 4-piston, hydraulic disc, 220mm
Brake Levers Shimano Deore XT, I-spec EV
Cassette Shimano CS-M7100, 10-51T, 12-speed
Chain KMC e.12 Turbo, EcoProteq, e-bike optimized
Crankset Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set
Rims e-TRX Hookless Clincher, 29", 30mm inner width
Hubs e-TRX 6 Bolt, Shimano Micro-spline, 110 x 15 [F], 148 x 12 [R] Thru Axle
Tires Maxxis Minion DHF 29x2.6" foldable, Tubeless, EXO+, 3C MaxxTerra [F]Maxxis Dissector 29x2.6" Foldable, Tubeless, EXO+, 3C MaxxTerra [R]
Extras Tubeless kit (liquid, valves, levers)
Lighting Optional:- Giant Recon series e-bike lights available and direct connectable
Lock Torx 25 Battery Lock with built-in Torque limiter
WeightThe most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
